Wind Turbines types and components

Types of Wind Turbines

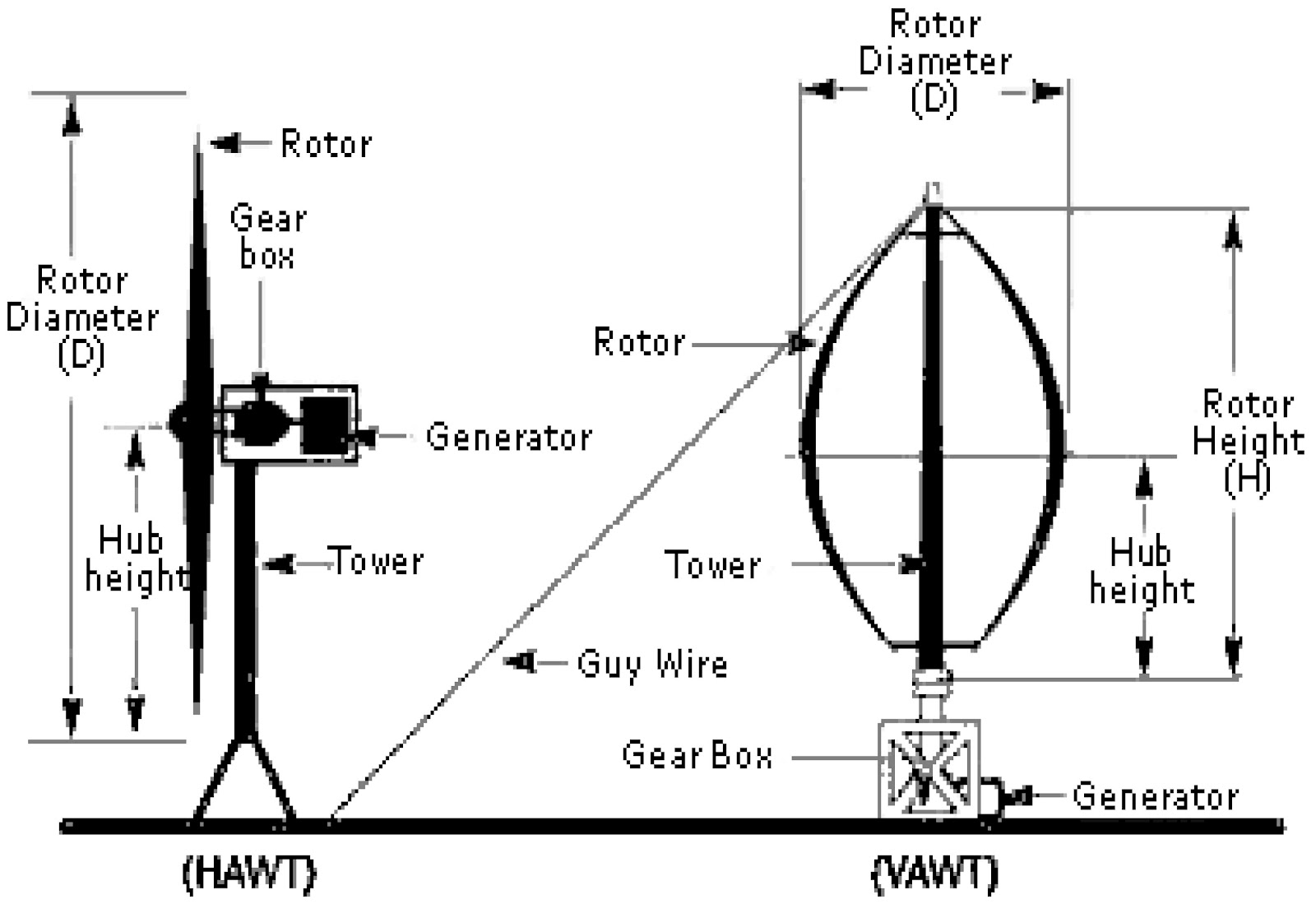

There are mainly two types of wind turbines: horizontal and vertical axis. Horizontal axis wind turbines (HAWT) and vertical axis wind turbine (VAWT) are classified or separated by the axis of rotation of the rotor shafts.
Horizontal Axis Wind Turbines - Horizontal axis wind turbines, also known as type HAWT turbines have a rotor with horizontal axis and an electric generator, which are both located on top of a tower.
Vertical Axis Wind Turbines - Abbreviated as VAWTs, are designed with a vertical rotor shaft, a generator and the gearbox is placed in the bottom of the turbine blade and unique shape of the rotor is designed to capture wind energy, without consider what direction it is blowing.
The first is the Darrieus turbine, which is designed to resemble like a modified egg beater. These turbines have a very good performance, but their lack of reliability due to the huge amount of torque exerted on the frame. In addition, they also need a small generator to start.
Savonius VAWT

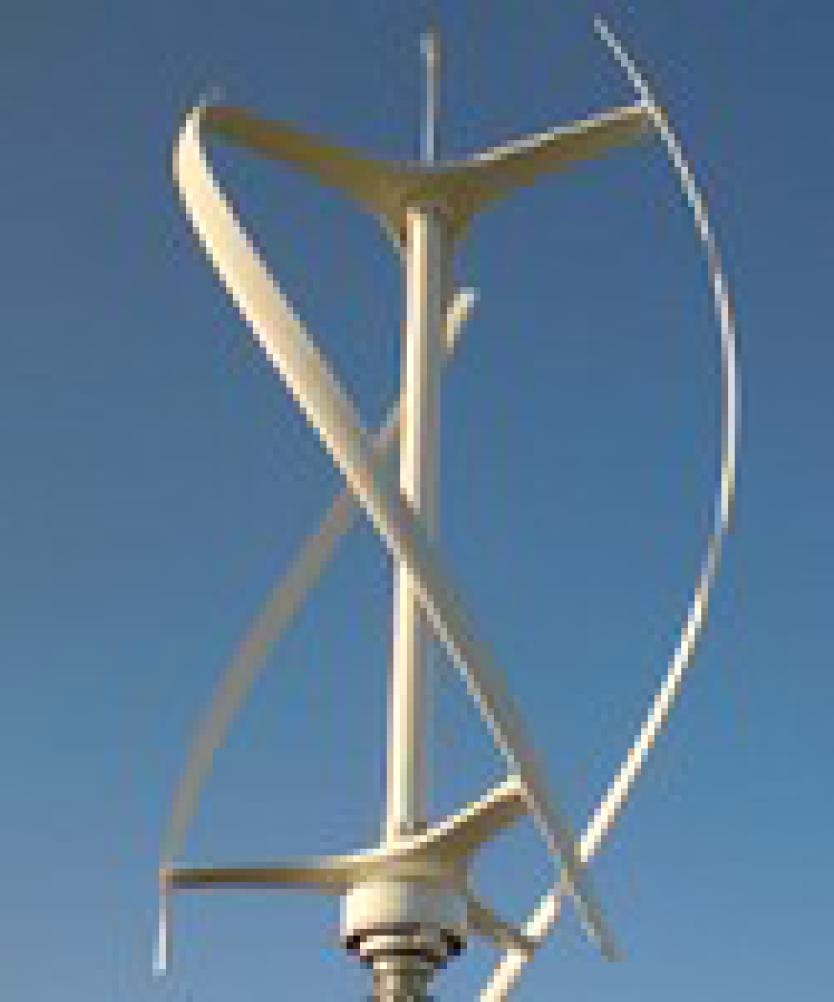

Helical VAWT
Darrieus VAWT
3-blades HAWT
2 blades HAWT
Savonius VAWT Helical VAWT Darrieus VAWT 3-blades HAWT 2 blades HAWT
Figure 4.1 Wind Turbines, Some types
Components of a Wind Turbine
Wind turbine usually has six main components: the rotor, the gearbox, the generator, the control and protection system, the tower and the foundation. These main components can be seen in figure 4.2.
Wind Turbine components Figure 4.2 Wind Turbine components
Rotor - The rotor is an elegant aerofoil shaped blades which take the wind and aerodynamically converts its kinetic energy into mechanical energy through a connected shaft.
Gearbox - The gearbox alters the rotational velocity of the shaft to suit the generator.
Generator - The generator is a device that produces electricity when mechanical work is given to the system.
Control and Protection System - The protection system is like a safety feature that makes sure that the turbine will not be working under dangerous condition. This includes a brake system triggered by the signal of higher wind speeds to stop the rotor from movement under excessive wind gusts.
Tower - The tower is the main shaft that connects the rotor to the foundation. It also raises the rotor high in the air where we can find stronger winds. With horizontal axis wind turbines, the tower houses the stairs to allow for maintenance and inspection.
Foundation - The foundation or the base supports the entire wind turbine and make sure that it is well fixed onto the ground or the roof for small household wind turbines. This is usually consists of a solid concrete assembly around the tower to maintain its structural integrity.
In addition to the main components of a wind turbine, a wind energy generation system is shown in Figure 4.2, incorporating a charge controller, Battery and inverter so that the electricity is converted for use by house appliances and lights.
Wind Energy System Figure 4.3 Wind Energy System
Relationship between Wind speed and Rotor speed
The Tip Speed Ratio - (often known as the tsr) is of vital importance in the design of wind turbine generators. If the rotor of the wind turbine turns too slowly, most of the wind will pass undisturbed through the gap between the rotor blades. Conversely if the rotor turns too quickly, the blurring blades will appear like a solid wall to the wind. Therefore, wind turbines are designed with optimal tip speed ratios to extract as much power out of the wind as possible.
The optimum tip speed ratio depends on the number of blades in the wind turbine rotor. The fewer the number of blades, the faster the wind turbine rotor needs to turn to extract maximum power from the wind. A two-bladed rotor has an optimum tip speed ratio of around 6, a three-bladed rotor around 5, and a fourbladed rotor around 3. Figure 4.4 show some of the common Wind turbines and their respective efficiency against tip speed ratio (tsr).
Typical Wind turbine efficiencies Figure 4.4 Typical Wind turbine efficiencies
