**INTRODUCTION TO MICROCONTROLLER PIC16F72 AND ACCESSOREIS****4.1 CALCULATIONS****4.1.1 ASSUMPTIONS**Let us assume that we have to generate a 50 Hz sine PWM. For this we need a triangular wave with 10 times the frequency of the desired sine wave. For simplicity we denote the factors with some symbols whose are listed below-

V

_{s}= instantaneous voltage of the sine waveV

_{m }= maximum amplitude of the sine wavef = frequency of the sine wave (50 Hz)

t = time

T = period of the sine wave (20 ms)

τ = half of the period (10 ms)

V

_{c}= instantaneous voltage of the reference triangular waveV

_{cm}= maximum amplitude of the reference triangular waveM = modulating index (0.8) =

**4.1.2 EQUATIONS AND TIME CALCULATIONS**We have the equation of the sine wave is-

**V**_{s}= V_{m}sin**ωt****…………..(4.1)**For determining

**t**according to figure 4.1 we get the equation for straight line containing_{1}**t**is-_{1}And the equation for the sine wave remains-

**V**_{s}= V_{m}sin ωt_{1}…………(4.3)
Figure 4.1: Positive half comparison

For **t**we can equalize the two equations as below-_{1}Solving equation (4.5) we get the value of

**t**-_{1}**t**800.8429071 us_{1}=Similarly solving the equation considering the straight line containing

**t**we get the value of_{2}**t**_{2}**-**Solving the equation considering the straight line containing

**t**we get the value of_{3}**t**_{3}**-**Solving the equation considering the straight line containing

**t**we get the value of_{4}**t**_{4}-Solving the equation considering the straight line containing

**t**we get the value of_{5}**t**_{5}-**=>****t**4.223675159 ms_{5}=Solving the equation considering the straight line containing

**t**we get the value of_{6}**t**_{6}-Solving the equation considering the straight line containing

**t**we get the value of_{7}**t**_{7}-Solving the equation considering the straight line containing

**t**we get the value of_{8}**t**_{8}-Solving the equation considering the straight line containing

**t**we get the value of_{9}**t**_{9}-Solving the equation considering the straight line containing

**t**we get the value of_{10}**t**_{10}-We have to accept some assumption on approximate values of these times because the microcontroller can not accept fractional values efficiently. Thus we get the following values of

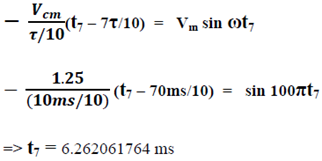

**t –****t**800.8429071 us ≈ 801us_{1}=**t**1.323 ms ≈ 1.323ms_{2}=**t**2.444299507 ms ≈ 2.444ms_{3}=**t**3.737938236 ms ≈ 3.738ms_{4}=**t**4.223675159 ms ≈ 4.224ms_{5}=**t**5.776324841 ms ≈ 5.776ms_{6}=**t**6.262061764 ms ≈ 6.262ms_{7}=**t**7.5557 ms ≈ 7.556ms_{8}=**t**8.676980416 ms ≈ 8.677ms_{9}=**t**9.199157093 ms ≈ 9.199ms_{10}=**4.1.3 DURATIONS OF THE PULSES**From the ten intersection points with the times we get the durations of 5 high states and 6 low states for the first 180

^{0}of the 1^{st}phase. The approximate view is shown below-
Figure 4.2: First positive half cycle of the first phase

**4.1.4 CALCULATIONS FOR THE DURATIONS**Here the durations are given according to time intervals with corresponding amplitude states-

Duration 1: (801us - 0 s) = 801 us

Duration 2: (1.323 ms - 801us) = 522 us

Duration 3: (2.444 ms - 1.323 ms) = 1.121 ms

Duration 4: (3.738 ms - 2.444 ms) = 1.294 ms

Duration 5: (4.224 ms - 3.738 ms) = 486 us

Duration 6: (5.776 ms - 4.224 ms) = 1.552 ms

Duration 7: (6.262 ms - 5.776 ms) = 486 us

Duration 8: (7.556 ms - 6.262 ms) = 1.294 ms

Duration 9: (8.677 ms - 7.556 ms) = 1.121 ms

Duration 10: (9.199 ms - 8.677 ms) = 522 us

Duration 11: (10 ms - 9.199 ms) = 801 us

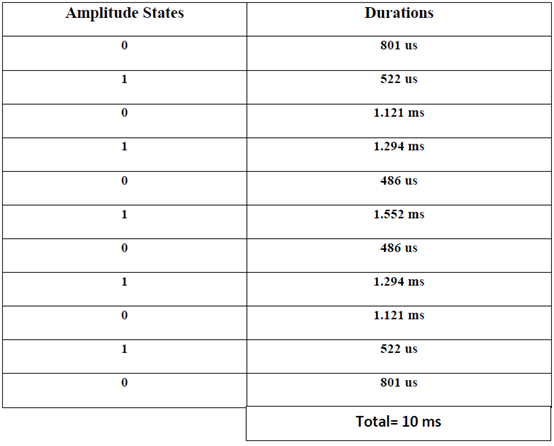

The above data’s are arranged in the table 1 below-

Table 1: Logic states of PWM

**4.1.5 THREE PHASE ASSUMPTIONS AND LOGIC STATES**
Now for the other phases and their logic states we have to calculate the phase shift of the subsequent phases in terms of delay in ms or us. As it is very lengthy process to show the calculation we only show the logic states and their corresponding duration or time ranges. These are shown in the following figure and then the calculated values are shown in tables-

Figure 4.3: Three phase representation in terms of six gate signals

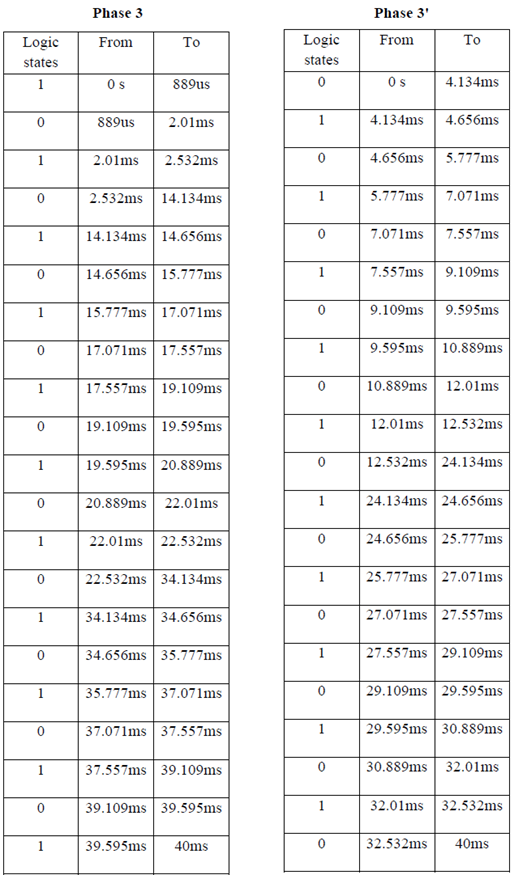

From the above tables taking the times from

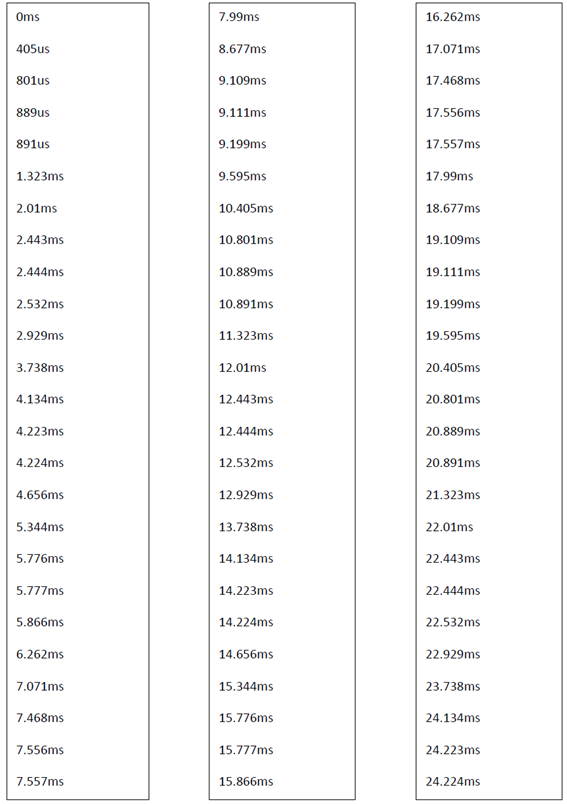

*0 second*to*40 ms*sequentially we get the following Set of times-
As the above data’s are in huge number they can not be plotted in a single figure. Setting only the times in figure 4.4 and figure 4.5 we get six logic states for every time intervals listed above.

**Figure 4.4:**1

^{st}half logical states of six phase pulses

**Figure 4.5:**2

^{nd}logical states of six phase pulses

**4.2 PWM IMPLEMENTATION****4.2.1 DEFINING THE PORTS OF MICROCNTROLLER**
In the figures the phase sequence is phase 1, phase 2, phase 3, phase 1', phase 2', phase 3'.from the figures 4.4 & 4.5 we can now arrange the programming process in the microcontroller. For final touch we arrange the phase according to pin of the microcontroller. We have use the first 3 pins of port B for Phase 1, Phase 2 and Phase 3 respectively and first 3 pins of port A for Phase 1', Phase 2' and Phase 3' respectively. The pin logical states are shown below where first 3 states for port B ( RB0, RB1 and RB2 respectively ) and the next 3 states for port A ( RA0, RA1 and RA2 respectively ) . The durations are calculated subtracting two consecutive instant of time with the corresponding logical states (as shown in figure 4.4 and figure 4.5).

**4.2.2 PROGRAMMING THE MICROCONTROLLER**Lets start from a simple programming in PIC16F72 using mikroC programming language.

void main()

{

trisa = 0b00000000; // defining all the pins of port A are output pins //

trisb = 0b00000000; // defining all the pins of port B are output pins //

while(1) // infinite loop creation //

{

portb=0b00000001; // changing the states of RB0, RB1 and RB2 to 1, 0 and 0 respectively //

porta=0b00000010; // changing the states of RA0, RA1 and RA2 to 0, 1 and 0 respectively //

delay_us(405); // holding the above states of the pins for 405 microsecond //

portb=0b00000001; // changing the states of RB0, RB1 and RB2 to 1, 0 and 0 respectively //

porta=0b00000000; // changing the states of RA0, RA1 and RA2 to 0, 0 and 0 respectively //

delay_us(396); // holding the above states of the pins for 396 microsecond // }

}

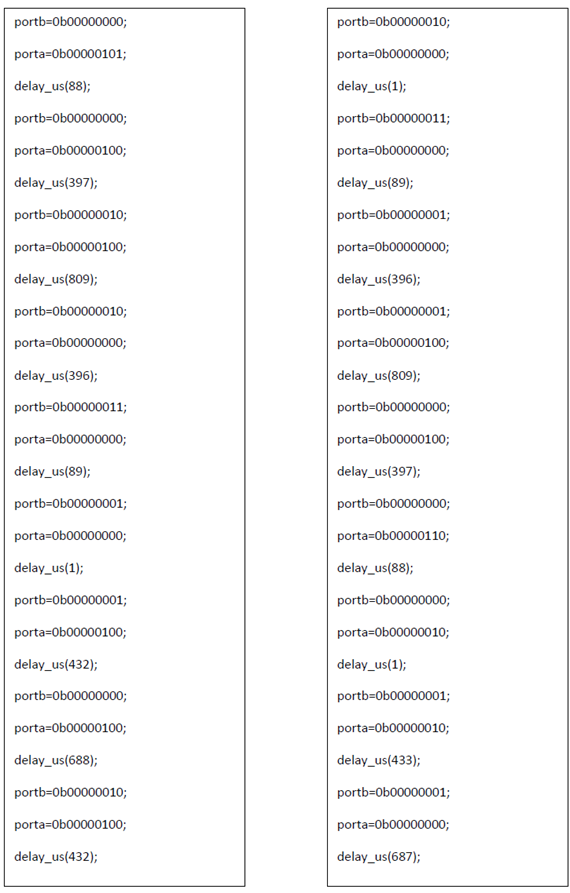

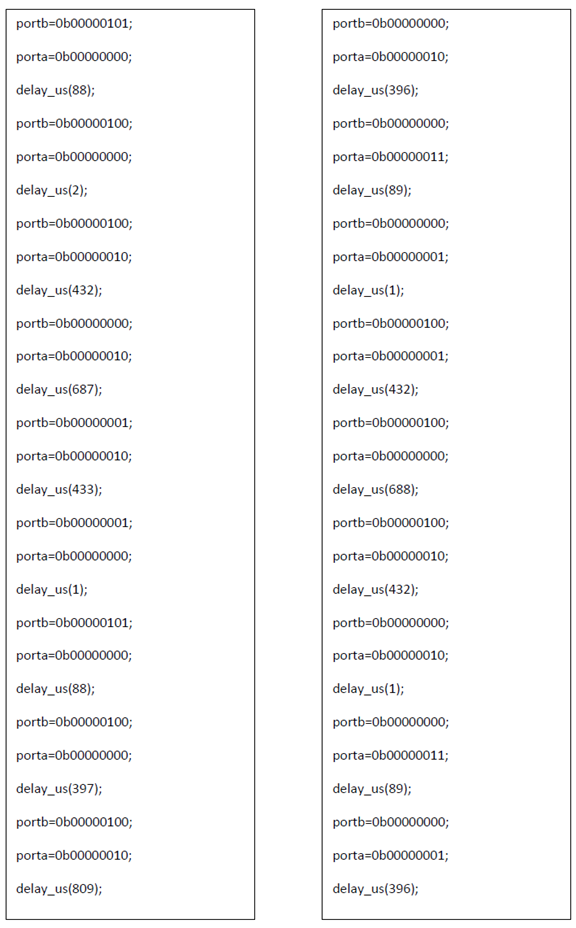

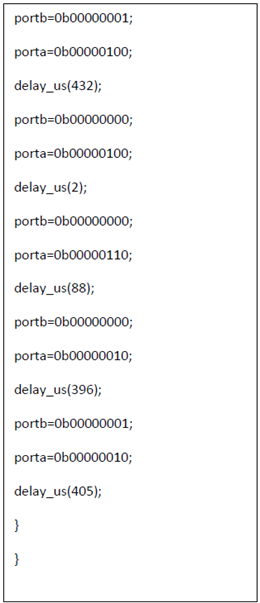

The above change of states will be repeated infinitely. Now we can implement similarly our desired program using the format shown above. The program is given below-

**4.2.3 CIRCUIT DIAGRAM**
From the datasheet of PIC16F72 we know that port B consist of 8 pins starting from pin 21 to pin 28 denoting RB0, RB1, RB2, RB3, RB4, RB5, RB6 and RB7 and port A consist of 6 pins starting from pin 2 to pin 7. Also have a reset pin that should be connected to Vdd. According to the program the connection diagram is shown in figure 4.6. We have the phases denoted by

*Phase 1*from pin no. 21 (RB0),*phase 2*from pin no. 22 (RB1),*phase 3*from pin no. 23 (RB2),*phase 1'*from pin no. 2 (RA0),*phase 2'*from pin no. 3 (RA1) and*phase 3'*from pin no. 4 (RA2). The connection in Breadboard with the resultant wave forms we get from oscilloscope are shown below subsequently.
Figure 4.6: Connection diagram of PIC16F72 for six phase SPWM

**4.3 OVERALL BLOCK DIAGRAM OF THE PROCEDURE**
The step by step process is very lengthy. So for easy understanding the overall process, calculation and implementation process is explained in the following block diagram-
