STUDY ON THE IDENTIFICATION OF INRUSH CURRENT OF POWER TRANSFORMER

Presentation on STUDY ON THE IDENTIFICATION OF INRUSH CURRENT OF POWER TRANSFORMER

Power transformers are one of the most important, expensive and essential elements in power system. Reliability and stability of the whole power system are the primary issues concerning transformers. Therefore, the continuity of transformer operation and their protection are of vital importance in maintaining the reliability of power supply. The major concern in power transformer protection is to avoid the false tripping of the protective relays due to misidentifying the magnetizing inrush current. Hence it is more than essential to identify the Inrush accurately to distinguish it from fault current and to convey this knowledge to the differential protective devices or means should be employed to mitigate it.
OBJECTIVES
  1. To study the source of Inrush Current in Power Transformer
  2. To study various characteristics of Inrush current on the basis of different design parameter of Power Transformer
  3. To study the problems in power system occurring due to inrush current of Power Transformer
  4. To make a comparative study of different techniques for identifying Inrush current
  5. To identify a better method of mitigation of Inrush current from different available techniques
  6. To simulate the transient inrush in Power Transformer.
WHAT IS INRUSH
Literally “Inrush” means “that rushes in”. An inrush current is the surge of transient current that rushes in a transformer when a transformer is energized. These currents are high magnitude, harmonic-rich currents generated when transformer cores are driven into saturation.
CAUSES OF INRUSH
Although usually considered as a result of energizing a transformer, the magnetizing inrush may be also caused by:
  1. Occurrence of an external fault,
  2. Voltage recovery after clearing an external fault.
TYPES
  1. Energization inrush
  2. Recovery inrush
  3. Sympathetic inrush
HOW IT OCCURS?

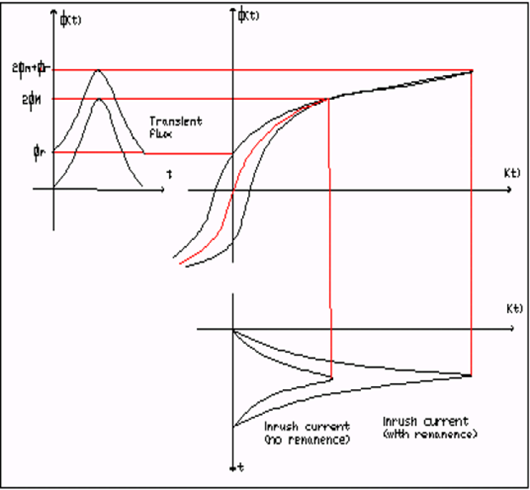

The driving force of the inrush current is the voltage applied to the primary of the transformer. This voltage forces the flux to build up to a maximum theoretical value of double the steady state flux plus remanence.
max=2m+r
Therefore, the transformer is greatly saturated and draws a large amount of current.
transformer is greatly saturated and draws a large amount of current
SHAPE, MAGNITUDE& DURATION OF INRUSH
Shape, Magnitude & Duration of Inrush Current depends on several factors:
  1. Size of a transformer
  2. Impedance of the system from which a transformer is energized
  3. Magnetic properties of the core material
  4. Remanence in the core
  5. Way a transformer is switched in
PROBLEMS CAUSED BY INRUSH
Power quality problems:
1.UNBALANCE       2.HARMONICS

Other disturbances caused by inrush:
  1. Incorrect operation and failures of electrical machines and relay systems
  2. Irregular voltage distribution along the transformer windings
  3. High amount of voltage drop at the power system at energization times
  4. Electrical and mechanical vibrations among the windings of the transformer
METHODS OF IDENTIFICATION
The schemes currently used to distinguish between magnetizing Inrush and fault current are based on:
  1. Second harmonics restraint principle,
  2. Voltage restraint principle,
  3. Restraint principle based on currents and voltages of the transformers
  4. But the second harmonic component is widely used for the detection of inrush current in power transformer.
PROBLEMS IN IDENTIFYING INRUSH USING SECOND HARMONICS COMPONENT
  1. The magnitude of the second harmonic in fault current can be close to or greater than that present in the magnetizing inrush current.
  2. The second harmonic components in the magnetizing inrush currents tend to be relatively small in modern large power transformers
  3. Consequently, differential protection technique based on the second harmonic restraint may fail.
SOLUTION

Some cheaper and easy to implement methods that do not rely on the presence of harmonic components to identify inrush are :
  1. Rectifier relay
  2. Waveform recognition or Dwell-time
  3. Power differential method
  4. Cross blocking
MITIGATION TECHNIQUES
A number of mitigation techniques have been proposed through the years of investigation. External components such as resistors, thyristors, relays, timers and inrush thermistors in the primary circuit can be used to attenuate inrush. Here are some widely used inrush mitigation techniques:

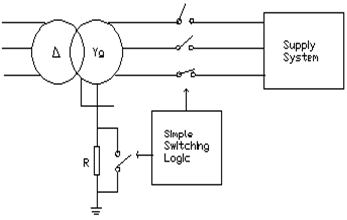

INRUSH MITIGATION USING PRE-INSERTION RESISTOR
A resistor inserted in series with primary winding will reduce the inrush current during switch on.
INRUSH MITIGATION USING PRE-INSERTION RESISTOR
INRUSH MITIGATION USING NTC THERMISTOR
INRUSH MITIGATION USING NTC THERMISTOR
TRANSFORMER INRUSH CURRENT REDUCTION BY FLUX REDUCTION METHOD
A new simple and efficient technique for inrush current reduction is based on core flux reduction prior to primary circuit energization. Flux reduction can be achieved by applying a voltage to the core with the help of a tertiary winding. However, incorporating a tertiary winding of rating same as primary is a costly affair for a large power transformer. Hence, reducing the rating of the tertiary winding is tested; it is observed that appreciable inrush reduction could be achieved.
MATLAB SIMULATION
SYMPATHTIC INRUSH
SYMPATHTIC INRUSH
SYMPATHTIC INRUSH
SIMULATION OF ENERGIZATION INRUSH

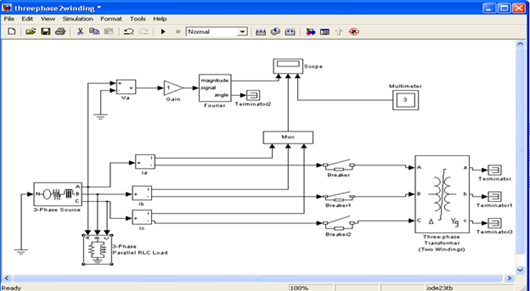

THREE PHASE SIMULINK MODEL
THREE PHASE SIMULINK MODEL
Phase-phase current waveform
Phase-phase current waveform
Flux, current and breaker voltage waveform
Flux, current and breaker voltage waveform
Flux, current and breaker voltage waveform (in Scope)
Flux, current and breaker voltage waveform (in Scope)
SINGLE PHASE SIMULINK MODEL
MODEL FOR ENERGIZATION INRUSH & REDUCTION USING PRE-INSERTION RESISTOR
MODEL FOR ENERGIZATION INRUSH & REDUCTION USING PRE-INSERTION RESISTOR
INRUSH WAVEFORM
INRUSH WAVEFORM
REDUCED INRUSH
REDUCED INRUSH
CONCLUSION
Some methods for identifying inrush current are discussed and some well known cheap and widely used mitigation techniques have been studied with their merits and demerits. But still there is no boundary of improvement in this field. It may be stated emphasisly that inrush current is a sector to give attention to find still better way of identification and mitigation.
Submitted by Muhammad Imrul Ahsan and Joydeep Chowdhury
